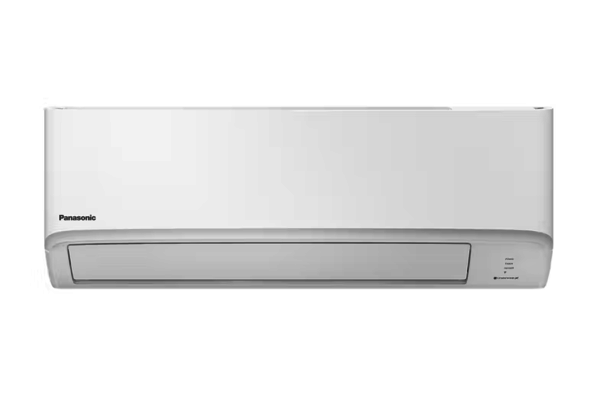

Panasonic 4.2/5.1KW Hi-wall Aero series - nanoeX and built-in wifi
Model CS-Z42XKRW
Cooling Capacity (kW) 4.20 (1.15-5.10)
Heating Capacity (kW) 5.10 (0.90-6.80)
Air Flow (L/s) 193/202
Dehumid (L/h) 2.40
Running Current (A) 5.00/5.70
Power Input (kW) 1.18 (0.24-1.64)/1.36(0.20-2.04)
AEER/EER (W/W) 3.53/3.56
ACOP/COP (W/W) 3.73/3.75
Star Rating 3.5/5.0
Inside Sound Pressure Level (dB) (Hi/Lo/S-Lo) 44/31/28
Outside Sound Pressure Level (dB) (Hi/S-Lo) 49/44
Sound Power Level (db) (Hi/S-Lo) 64/59
Net Weight – Indoor (Outdoor) 8 (31)
Dimensions – Indoor (Outdoor) (h x w x d) 290 x 779 x 209
Refrigerant Pipe Diameter – Liquid Side (mm/(in)) 6.35 (1/4)
Refrigerant Pipe Diameter – Gas Side (mm/(in)) 12.7 (1/2)
Pipe Extension Length Min-Max (m) 3~20
Pipe Length for Additional Gas (m) 7.5
Additional Gas Amount (g/m) 10
Power Supply Outdoor
Operating Range (Outdoor) – Cooling (C) -10 ~ +46
Operating Range (Outdoor) – Heating (C) -15 ~ +24
Refrigerant Type R32
